Product information "Universal setting punch set for standard eyelets"
This set pairs the universal setting punch (1/4"-20 UNC) with a matching eyelet die for standard eyelets, or the punch alone. Work with a hammer: screw in the upper die, seat the lower die, set the eyelet.
Size is the inside diameter and the die size: 3 / 4 / 5 / 6 / 7 / 10 / 12 / 17 mm.
Standard eyelets and the hole punch are not included. Eyelets are not self-piercing. Brass (to 17 mm) for clothing; stainless for moisture and load; steel for indoor budget use. Not for DIN 7332.
Login
No reviews found. Share your insights with others.
What is in each variant?
Always the universal setting punch. With a size, the matching standard-eyelet die. Without tool: punch only. Eyelets, hole punch and hammer are not included.
What does size mean?
Inside diameter of the standard eyelet and the die size. The pre-punched hole must match.
Do I need to pre-punch?
Yes. Standard eyelets are not self-piercing.
Can I set DIN 7332 eyelets?
No. This set is for standard eyelets only.
Can I use the die in a press later?
Yes, if the press has 1/4"-20 UNC on top, e.g. TEP-2.
Size
- Inside diameter = die size: 3, 4, 5, 6, 7, 10, 12, 17 mm.
- Without tool: punch only.
- Brass eyelets 3–17 mm; stainless 4, 5, 6, 7, 10 mm; steel 3, 4, 5, 7, 10, 12 mm — sold separately.
Use
- Standard eyelets in fabric, leather, tarps, bags, banners and DIY — with a hammer and setting punch.
- Brass for clothing, stainless steel for moisture/outdoor, steel for dry indoor projects.
Preparation
- Pre-punch: hole diameter = eyelet inside diameter. Matching hole punch sold separately.
Workflow
- Screw the upper eyelet die into the 1/4"-20 UNC thread.
- Place the lower die shank in the base.
- Punch the material if needed.
- Load the eyelet shank-up, fabric, then washer; strike the punch in a controlled way.
With Getmore Crafts products
- For standard eyelets with washers. Eyelet, die and hole must match.
- 1/4"-20 UNC dies also fit Getmore presses with that thread.
- Pre-punch with a matching hole punch (not in the set).
- Not for DIN 7332 eyelets.
Other brands
- Third-party eyelets only if geometry matches. No general guarantee (not DIN 7332).
Your package contains

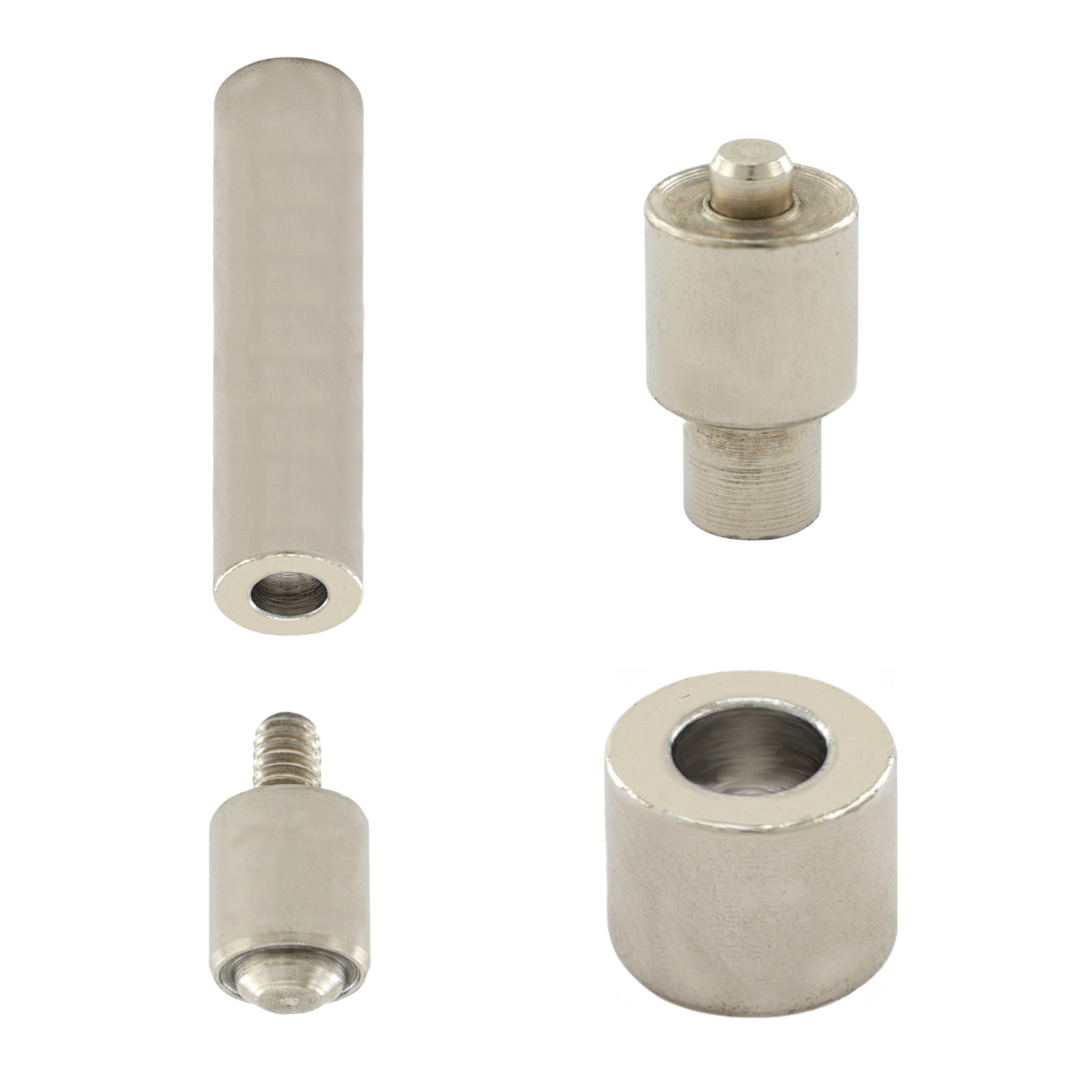

- 1 universal setting punch 1/4"-20 UNC
- With a chosen size: 1 eyelet die
- Without tool: no eyelet die
Not included
Technical details
| Device | Universal setting punch, hammer use |
| Punch material | polished steel |
| Punch height | approx. 12 cm |
| Punch diameter | approx. 1 cm |
| Punch weight | approx. 0.037 kg |
| Upper thread | 1/4"-20 UNC |
| Lower seat | bore for die shank |
| Consumable type | standard eyelets (not DIN 7332) |
| Size logic | size = inside Ø = eyelet die |
| Die sizes | 3 / 4 / 5 / 6 / 7 / 10 / 12 / 17 mm |
| Pre-punch required | yes |
| Country of origin | TR |
